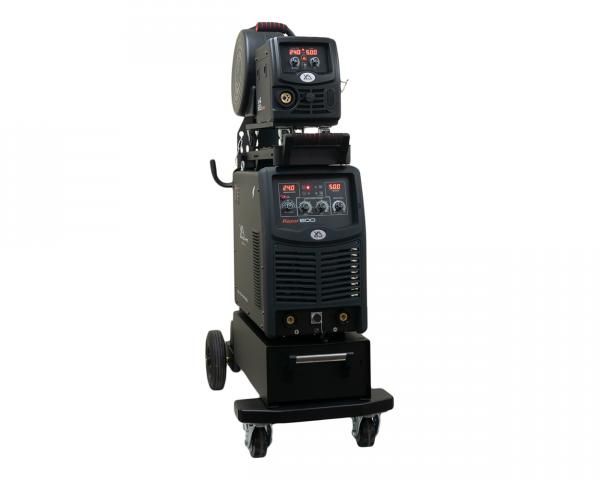

RAZORWELD MIG500RZSWF MULTIFUNCTION INVERTER WELDER
Description
RAZORWELD MIG500SWF MULTIFUNCTION INVERTER WELDER
Multifunction MIG Welder
500 Amp MIG/TIG/MMA
Separate Wire Feeder
Welds: Steels, Stainless, Cast Iron, Bronze, Aluminum, Copper
Product Overview
The MIG500RZSWF is a high-quality multifunction industrial welding inverter capable of MIG, DC TIG, MMA and Arc Air Gouging. The primary function of MIG sees the machine equipped with a separate 4-roll gear driven wire feeder with 10m interconnecting cables, and is ready to accept both Push Pull and Spool Guns for plug and play operation. Step-less adjustment of voltage and wire feed from the wire feeder makes for easy setting of welding parameters remote from the power source. The MIG function allows you to weld with Solid Wires, Flux-Cored Gas and Gasless wires, Crater Current function delivers perfect finishing of the weld while Electronic Inductance offers fine adjustment of the arc characteristic. MMA function delivers ease of welding with electrodes producing high quality welds including cast iron, stainless steel and low hydrogen. DC-TIG capability with Lift-Arc ignition allows high quality TIG welding with perfect arc ignition every time and a remarkably smooth stable arc. Arc Air function combined with the immense power and strength of the MIG500RZ inverter delivers you Arc Air gouging using up to 9.5mm carbons. Mounted on a purpose-built trolley with gas cylinder storage rack, industrial wheels and castors, fitted with a removable storage drawer allows for the optional water cooler to slide into the drawer cavity for water cooled torch operation .The MIG500RZSWF is a popular choice with structural fabricators including steel & aluminum welding applications, marine and transport engineering, earthmoving contractors, forestry and farm workshops. The three-phase MIG500RZSWF gives you the flexibility of a small separate wire feeder unit with on demand power to get even the biggest jobs done. Built to our specification and manufactured in compliance to AS/NZ60974-1.
Standard Package includes: XA-MIG500SWF Welding Machine, XA38 Mig Torch x 4m, Earth Lead & Arc Lead x 5m, Regulator
3-Phase Supply Plug not included but can be supplied & fitted if specified
Features
• Proven IGBT inverter technology
• MIG/MAG with Gas and Gasless capability
- Adjustable Burn Back
- Separate 4-roll geared wire feeder unit
- Voltage & Wire Speed controls at wire feeder
- 10m interconnecting cables
- Adjustable Crater Current function
- Variable Inductance
- Euro style Mig Torch connection
- Spool Gun and Push-Pull Gun Ready
- Co2 Heater Connection 36VDC
• MMA function (Stick electrode)
- Hot start (improves electrode starting)
- Arc Force (prevents electrode extinguishing)
• DC TIG welding with Lift-Arc
• Arc Air Gouging Mode
• Digital Amp - Volt Meters
• Heavy Duty Trolley
• Water Cooler Option
Technical Data
Power Supply - 415V 3-Phase ±15%
Rated Input Power - 24.7 kVA
I ieff as per AS/NZ60974-1 MIG - 26.0 Amps
I ieff as per AS/NZ60974-1 MMA - 27.0 Amps
Output Current Range MIG - 50A/16.5V - 500A/39.0V
Output Current Range MMA - 20A/20.8V - 500A/40.0V
Duty Cycle @ 40ºC as per AS/NZ60974-1 - 60% @ 500 Amps
Protection Class - IP21S
Insulation Class - F
Warranty 36 months machine only
Certification Approval - AS/NZ60974-1
