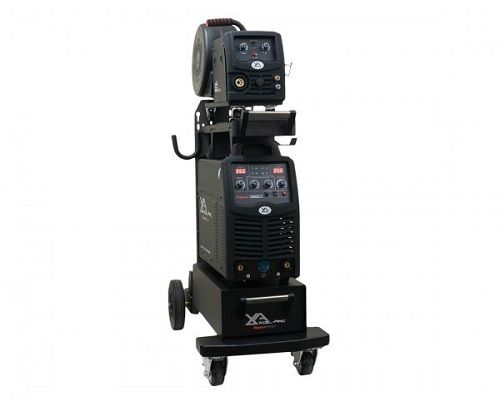

RAZORWELD MIG350SWF MULTIFUNCTION INVERTER WELDER

Stock Code:
XA-MIG350SWFK
Price:
$6,613.65 Incl. GST
Unavailable for Online Purchase
Notify When in Stock
Add to Favourites
Make an Enquiry

Description

RAZORWELD MIG350SWF MULTIFUNCTION INVERTER WELDER

Features
• Proven IGBT inverter technology
• MIG/MAG with Gas and Gasless capabilty
- Adjustable Burn Back
- Separate 4-roll geared wire feeder unit
- Voltage & Wire Speed controls at wire feeder
- 10m interconnecting cables
- Adjustable Crater Current function
- Variable Inductance
- Euro style Mig Torch connection
- Spool Gun and Push-Pull Gun Ready
- Co2 Heater Connection 36VDC
• MMA function (Stick electrode)
- Hot start (improves electrode starting)
- Arc Force (prevents electrode extinguishing)
• DC TIG welding with Lift-Arc
• Heavy Duty Trolley
• Water Cooler Option

Technical Data
Power Supply 415V 3-Phase ±15%
Rated Input Power 12.8 kVA
I ieff as per AS/NZ60974-1 MIG 24.0 Amps
I ieff as per AS/NZ60974-1 MMA 26.0 Amps
Output Current Range MIG 50A/16.5V - 350A/31.5V
Output Current Range MMA 20A/20.8V - 350A/34.0V
Duty Cycle @ 40ºC as per AS/NZ60974-1 40% @ 350 Amps
Protection Class IP21S
Insulation Class F
Warranty 36 months machine only
Certification Approval AS/NZ60974-1
