VIPER™ 165 MIG/TIG/STICK WELDER

Stock Code:
XA-MIG165V-K
Price:
$934.61 Incl. GST
Add to Favourites
Make an Enquiry

Description

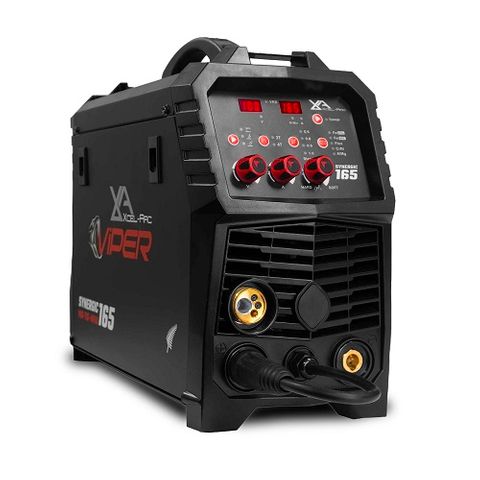

VIPER™ 165 MIG/TIG/STICK WELDER

The VIPER™ 165 is the ultimate multi-process welder for the DIY enthusiast. MIG, TIG or STICK, the VIPER™ does it all, and it’s ready to go anywhere you have a standard 10-amp outlet. Get repairs done and see your projects come together in record time with the ability to change modes with the flick of a switch.

The VIPER™ 165 is the perfect solution for those looking for insane performance without needing to blow your budget on multiple welders.

MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE -230V Single Phase
SUPPLY PLUG - 10 AMP
RATED INPUT POWER (kVA) - 5.9
Ieff (A) - 9.8
PROTECTION CLASS - IP21S
INSULATION CLASS - H
POWER FACTOR - 0.72
DINSE CONNECTOR - 35/50
STANDARD - AS/NZ60974-1
SUITABLE MATERIAL - Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
WARRANTY (Years) - 2

MIG SPECIFICATIONS
MIG WELDING CURRENT RANGE - 30-165A
MIG DUTY CYCLE @ 40°C - 10% @ 165A
MIG WIRE SIZE RANGE - 0.6-0.9mm
MIG WIRE SPOOL SIZE - 1kg / 5kg
MIG WELDING THICKNESS RANGE - 1-10mm
DRIVE ROLLER SIZE - 30/22

TIG SPECIFICATIONS
TIG FUNCTION TYPE - DC Lift Arc
TIG WELDING CURRENT RANGE - 20-160A
TIG DUTY CYCLE @ 40°C - 10% @ 160A
TIG WELDING THICKNESS RANGE - 1-6mm

STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE - 20-140A
STICK DUTY CYCLE @ 40°C - 10% @ 140A
STICK ELECTRODE RANGE - 2.5-4.0mm
STICK WELDING THICKNESS RANGE - 2-10mm

SIZE & WEIGHT
DIMENSIONS (mm) - 500x210x385mm
WEIGHT (kg) - 10kg
