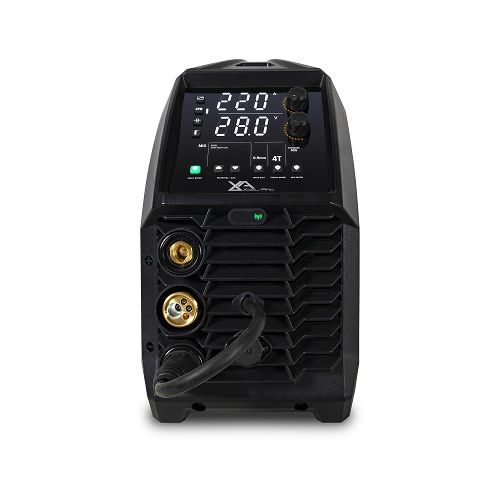

RAZORWELD 220 MIG/TIG/MMA WELDER

Stock Code:
XA-RZMIG220-K
Regular Price:
$1,754.33 Incl. GST
Price:
$1,686.00 Incl. GST
Unavailable for Online Purchase
Notify When in Stock
Add to Favourites
Make an Enquiry

Description

RAZORWELD 220 MIG/TIG/MMA WELDER

A professional machine in a portable case with all the power, the RAZORWELD MIG 220 is perfect for the worksite or the workshop.

Quick and easy setup with synergic MIG programs
3-in-1 multi-process machine so you can MIG, TIG & MMA
Geared wire drive system for smooth wire feeding
A 5-year warranty to reflect our confidence in this machine

WHATS IN THE BOX -

RAZORWELD MIG 220 Welder
3m M24 Digital MIG Torch
4m Twist Lock Electrode Holder
4m 300 Amp Earth Clamp & Lead
Twin Gauge Argon Regulator
1.8m Gas Hose with fittings
Operating Manual
0.8-0.9mm V Groove Roller
0.8-0.9mm Knurled / F Groove Roller
1.0-1.2mm U Groove Roller

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE - 240V Single Phase
SUPPLY PLUG - 15 AMP
Ieff (A) -14.7
RATED OUTPUT - 30A/15.5V - 220A/25V
NO LOAD VOLTAGE (V) - 60
PROTECTION CLASS - IP23S
INSULATION CLASS - H
MINIMUM GENERATOR (kVA) - 12.0
DINSE CONNECTOR - 35/50
STANDARD - AS/NZ60974-1
SUITABLE MATERIAL - MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron / TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
WARRANTY (Years) - 5

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE - 30-220A
MIG DUTY CYCLE @ 40°C - 15% @ 220A / 60% @ 110A / 100% @ 85A
MIG WIRE SIZE RANGE - 0.6-1.2mm
MIG WIRE SPOOL SIZE - 1kg / 5kg
MIG WELDING THICKNESS RANGE - 1-10mm
DRIVE ROLLER SIZE - 30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE - Trigger Controlled DC Lift Arc
TIG WELDING CURRENT RANGE - 5-220A
TIG DUTY CYCLE @ 40°C - 15% @ 220A / 60% @ 110A / 100% @ 85A
TIG WELDING THICKNESS RANGE - 1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE - 20-180A
STICK DUTY CYCLE @ 40°C - 15% @ 180A / 60% @ 90A / 100% @ 70A
STICK ELECTRODE RANGE - 2.5-4.0mm
STICK WELDING THICKNESS RANGE - 2-12mm

SIZE & WEIGHT
DIMENSIONS (mm) - 560×220×400
WEIGHT (kg) - 15.1kg

MACHINE FEATURES

WIRE DRIVE - Geared
VRD - Yes
SPOOL GUN CONNECTION - Yes
FOOT CONTROL CONNECTION - Yes
BURNBACK ADJUSTMENT - Yes
WIRE INCH - Yes
INDUCTANCE CONTROL - Yes
THERMAL OVERLOAD PROTECTION - Yes
