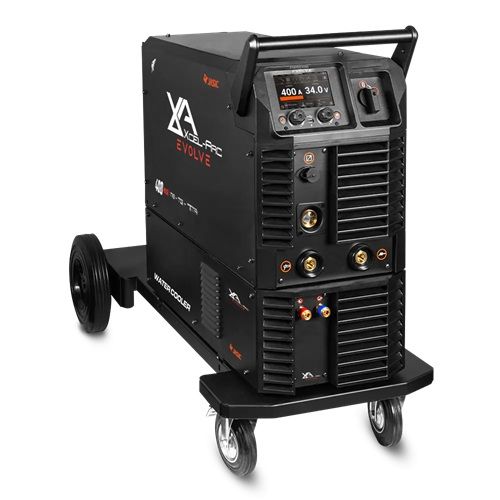

Xcel-Arc EVOLVE™ PULSE MIG400 Welder – Water Cooled Package

Stock Code:
XA-MIG400EVP-K
Price:
$10,839.00 Incl. GST
Unavailable for Online Purchase
Notify When in Stock
Add to Favourites
Make an Enquiry

Description

NOT ALL PULSE MACHINES ARE EQUAL
No spatter. Less heat. Same penetration. Streamline your welds with the single and double pulse functions.

100+ SMART-SET MIG PROGAMS
Getting set up for a weld has never been faster with over 100 synergic programs. Simply select your metal type, wire size, gas type and material thickness, and the machine does the rest. It’ll pick the optimal settings for your weld.

4 Geared Wire Drive
The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire-feeding, especially with longer torches.

MODULAR
ADD ONS
Futureproof your purchase with the EVOLVE 400 PULSE, with the option to add additional modules as you need them. These optional modules include a Separate Wire Feeder (SWF) module and an AC/DC TIG module for all your future needs.

PUSH-PULL READY
Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a ‘Pull’ motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.

IP21S
Rated IP21S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray from vertical while still.

Inverter Technology
Not every inverter is made equal. With Xcel-Arc’s ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.

Advanced MMA Features
Advanced MMA features are designed for improving weld quality and ease of use.

Power Factor Correction (PFC)
Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.

Specifications
Manuals & Downloads
Warranty Information
Product No: XA-MIG400EVP-K
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
240V Single-Phase / 415V Three-Phase

SUPPLY PLUG
32 AMP

RATED INPUT POWER (kVA)
25.3

Ieff (A)
14.4 (Single-Phase) / 18.3 (Three-Phase)

Imax (A)
32.2 (Single-Phase) 24.5 (Three-Phase)

RATED OUTPUT
20A-250A (240V Single-Phase) / 20A-400A (415V Three-Phase)

NO LOAD VOLTAGE (V)
70

PROTECTION CLASS
IP21S

INSULATION CLASS
H

DINSE CONNECTOR
35/50

STANDARD
AS/NZ60974-1

SUITABLE MATERIAL
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze | MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years)
5

MIG Specifications
MIG WELDING CURRENT RANGE
20-250A (Single-Phase) / 20-400A (Three Phase)

MIG DUTY CYCLE @ 40°C
20% @ 250A (Single-Phase) 60% @ 144A (Single-Phase) 100% @ 112A (Single-Phase) -- 60% @ 400A (Three-Phase) 100% @ 310A (Three-Phase)

MIG WIRE SIZE RANGE
0.6-1.6mm

MIG WIRE SPOOL SIZE
5kg / 15kg

MIG WELDING THICKNESS RANGE
0.6-20mm (Single Pass) >20mm (Multi Pass)

DRIVE ROLLER SIZE
30/22

STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
20A-225A (240V Single-Phase) / 20A-400A (415V Three-Phase)

STICK DUTY CYCLE @ 40°C
240V Single-Phase 20% @ 225A, 60% @ 130A, 100% @ 100A 415V Three-Phase 60% @ 400A, 100% @ 310A

STICK ELECTRODE RANGE
1.6-6.0mm

STICK WELDING THICKNESS RANGE
2-20mm

ARC FORCE
Adjustable

Size & Weight
DIMENSIONS (mm)
842x302x395mm

MACHINE FEATURES
WIRE DRIVE
Seperate 4 Geared

VRD
Yes

PUSH / PULL GUN CONNECTION
Yes

BURNBACK ADJUSTMENT
Yes

WIRE INCH
Yes

INDUCTANCE CONTROL
Yes

CRATER CURRENT CONTROL
Yes

THERMAL OVERLOAD PROTECTION
Over Temperature Warning

HEATING ELEMENT FOR CO2 REG
Yes
