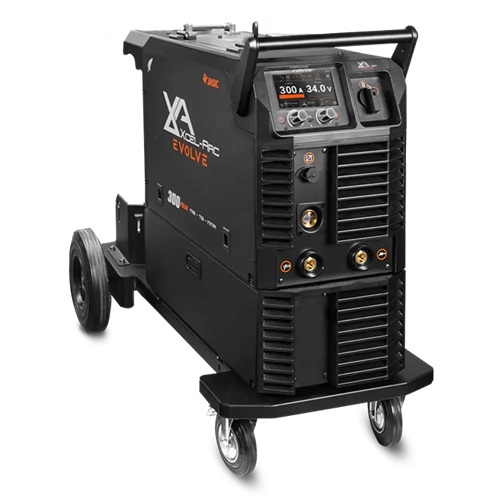

Evolve Pulse MIG300 Inverter Welder

415V THREE-PHASE |

Packed full of revolutionary technologies, futureproof your workshop with our all-new Xcel-Arc EVOLVE PULSE MIG300 Trolley Package.

Complete with single and double pulse MIG programs
Get a full range of additional modular accessories, including AC/DC TIG and Separate Wire Feeder unit
Comes packaged with a trolley

NOT ALL PULSE MACHINES ARE EQUAL
No spatter. Less heat. Same penetration. Streamline your welds with the single and double pulse functions.

100+ SMARTSET MIG PROGAMS
Getting set up for a weld has never been faster with over 100 synergic programs. Simply select your metal type, wire size, gas type and material thickness, and the machine does the rest. It�ll pick the optimal settings for your weld.

4 Geared Wire Drive
The most consistent and smoothest wirefeeding experience there is. With a four geared wire drive unit, there�s more power pushing the wire, improving the wirefeeding, especially with longer torches.

MODULAR
ADD ONS
Futureproof your purchase with the EVOLVE 400 PULSE, with the option to add additional modules as you need them. These optional modules include a Separate Wire Feeder (SWF) module and an AC/DC TIG module for all your future needs.

PUSHPULL READY
Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a �Pull� motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.

IP21S
Rated IP21S, so it�s protected from touch by fingers and objects greater than 12mm, and water spray from vertical while still.

Inverter Technology
Not every inverter is made equal. With XcelArc�s everevolving, stateoftheart IGBT Inverter technology, you get better performance, better efficiency, and better reliability.

Advanced MMA Features
Advanced MMA features are designed for improving weld quality and ease of use.

Power Factor Correction (PFC)
Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.

MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
240V Single-Phase / 415V Three-Phase
SUPPLY PLUG
32 AMP
Ieff (A)
14.2 (Single-Phase) / 12.4 (Three-Phase)
Imax (A)
36.7A (240V Single-Phase) / 16.0A (415V Three-Phase)
RATED OUTPUT
20A-250A (240V Single-Phase) / 20A-300A (415V Three-Phase)
NO LOAD VOLTAGE (V)
70
PROTECTION CLASS
IP21S
INSULATION CLASS
H
DINSE CONNECTOR
35/50
STANDARD
AS/NZ60974-1
SUITABLE MATERIAL
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron
WARRANTY (Years)
5
MIG Specifications
MIG WELDING CURRENT RANGE
20-250A (Single-Phase) / 20-300A (Three Phase)
MIG DUTY CYCLE @ 40°C
15% @ 250A (Single-Phase) 60% @ 125A (Single-Phase) 100% @ 97A (Single-Phase) — 60% @ 300A (Three-Phase) 100% @ 232A (Three-Phase)
MIG WIRE SIZE RANGE
0.6-1.2mm
MIG WIRE SPOOL SIZE
5kg / 15kg
MIG WELDING THICKNESS RANGE
0.6-20mm (Single Pass) >20mm (Multi Pass)
DRIVE ROLLER SIZE
30/22
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
20A-200A (240V Single-Phase) / 20A-300A (415V Three-Phase)
STICK DUTY CYCLE @ 40°C
20% @ 200A (Single-Phase) 60% @ 115A (Single-Phase) 100% @ 89A (Single-Phase) — 60% @ 300A (Three-Phase) 100% @ 232A (Three-Phase)
STICK ELECTRODE RANGE
1.6-4.0mm
STICK WELDING THICKNESS RANGE
2-10mm (Single Pass) >10mm (Multi Pass)
ARC FORCE
Adjustable
Size & Weight
DIMENSIONS (mm)
810x332x975mm
WEIGHT (kg)
44
MACHINE FEATURES
WIRE DRIVE
Seperate 4 Geared
VRD
Yes
PUSH / PULL GUN CONNECTION
Yes
BURNBACK ADJUSTMENT
Yes
WIRE INCH
Yes
INDUCTANCE CONTROL
Yes
CRATER CURRENT CONTROL
Yes
THERMAL OVERLOAD PROTECTION
Over Temperature Warning
HEATING ELEMENT FOR CO2 REG
Yes
