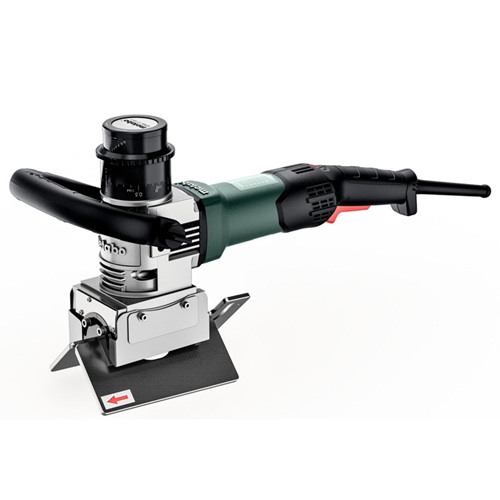

METABO 1700W METAL BEVELLING TOOL

Metal bevelling tool for chamfer heights up to 15 mm for weld seam preparation
One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
Precise setting of the chamfer angle directly via the guide plates
Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°
Guide stop for a uniform finish and high quality surface finish when processing straight edges
Controlled working by virtue of large-scale guide plates
Stop roller to guide along pipes for easy preparation of weld seams
Bail handle adjusts without tools for secure, even guiding
Metabo Marathon-motor with patented dust protection for long service life
Vario-Tacho-Constamatic (VTC)-Full Wave Electronics with Thumbwheel: for working at customised speeds to suit the application material and speeds that remain almost constant, even under load
Electronic overload protection, soft start and restart protection
Slim design for ideal handling
Protection of the user by virtue of lateral plates for conveying the chips
With metaBOX, the intelligent solution for transport and storage
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.

Characteristics
No-load speed6200 – 12000 rpm
Rated input power1700 W
Output power880 W
Type of edgesChamfer
Chamfer angles0 – 90 °
Max. chamfer width 45°21 mm
Max. chamfer height at 45°15 mm
Grading of cutting depth setting0.1 mm
Curves smallest outer Ø100 mm
Weight (without power cable)6.3 kg
Cable length3.9 m
Vibration
Vibration5 m/s²
Uncertainty of measurement K1.5 m/s²
Noise emission
Sound pressure level99 dB(A)
Sound power level (LwA)107 dB(A)
Uncertainty of measurement K3 dB(A)
