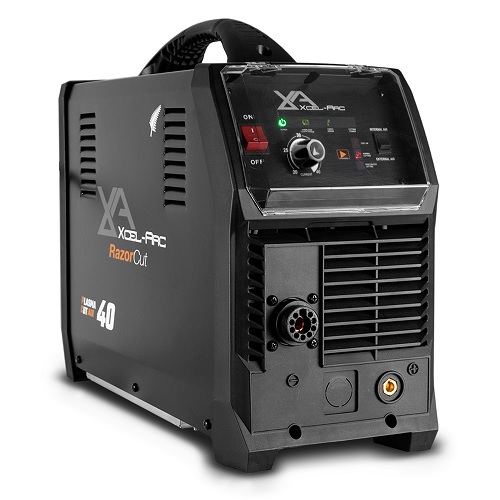

RAZOR CUT40 INVERTER PLASMA CUTTER BUILT IN COMPRESSOR

RAZOR CUT40 INVERTER PLASMA CUTTER BUILT IN COMPRESSOR

The RAZOR CUT 40 AIR is the perfect plasma cutter for the professional who wants a powerful plasma cutter with a built-in air compressor. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR CUT 40 AIR boasts some serious cutting power with 12mm clean-cut and 14mm severance on the built-in air compressor, and 16mm clean-cut and 18mm severance on an external compressor.

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE – 20-40A
PLASMA CUT DUTY CYCLE @ 40°C 25% @ 40A / 60% @ 26A / 100% @ 20A
MILD STEEL CUT THICKNESS – 10mm (INTERNAL) / 16mm (EXTERNAL)
MILD STEEL SEVERANCE THICKNESS – 12mm (INTERNAL) / 18mm (EXTERNAL)
ALUMINIUM CUT THICKNESS – 6mm (INTERNAL) / 8mm (EXTERNAL)
ALUMINIUM SEVERANCE THICKNESS – 8mm (INTERNAL) / 10mm (EXTERNAL)
STAINLESS STEEL CUT THICKNESS – 6mm (INTERNAL) / 10mm (EXTERNAL)
STAINLESS STEEL SEVERANCE THICKNESS – 8mm (INTERNAL) / 10mm (EXTERNAL)
AIR FLOW DRAW OFF (L/min) – 120
AIR FLOW PRESSURE (Bar) – 5.17 (75 psi)
PLASMA ARC START – Pilot Arc

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE – 240V Single Phase
SUPPLY PLUG – 15 Amps
RATED INPUT POWER (kVA) – 7.2
RATED OUTPUT – 96V
NO LOAD VOLTAGE (V) – 210
PROTECTION CLASS – IP21
MINIMUM GENERATOR (kVA) – 10
DINSE CONNECTOR – 10/25
STANDARD – AS/NZ60974-1
WARRANTY (Years) – 3
SIZE & WEIGHT

DIMENSIONS (mm) – 510x210x380mm
WEIGHT (kg) – 18
