Stronghand Rhino Cart – Table + 66pc Kit

The Rhino Cart®
Mobile Fixturing Station is a turnkey system for fixturing and clamping in welding and fabrication. Clamp and fixture at any point on the reversible, flat, nitrided (heat treated) 1,200 x 750mm tabletop for accuracy in all of your setups.

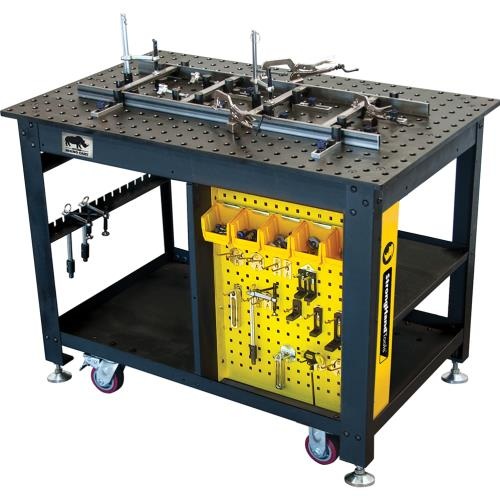

Be ready to handle any job with the Rhino Cart® package, including: the Rhino Cart® Welding Table + 66 pc. Fixture Kit. (Kit content may differ from image.)

1 x TDQ612075 – 1200 x 750 x 910mm Welding table cart
10 x T65055 – Ball lock bolt, adjustable range: 24 ~ 28mm
2 x T64201 – Ø16mm locating pin
2 x PT07K – Inserta pliers, 60mm opening, Max. 50mm reach
2 x PT09K – Inserta pliers, 85mm opening, Max. 75mm reach
2 x UDN6150 – Inserta clamp, 150mm opening, 83mm reach, 16 x 8mm (D Rail), T-handle
2 x T64217 – Magnetic top V pads for inserta pliers and inserta clamps
2 x TCX6210 – Side clamp, 38mm stroke
4 x T64203 – Stop, Ø25 x 38mm
4 x T64205 – Stop, Ø25 x 50mm
8 x T64216 – V-Block, Ø40 x 23mm
4 x T64211 – V-Block spacer, Ø40 x 27mm
8 x T60630 – D-Stop bar, 120 x 25 x 11.5mm
12 x T50737 – Magnetic rest button, Ø40 x 11.5mm
2 x T60304 – Right angle bracket, 41 x 91 x 30mm
2 x T60305 – Right angle bracket, 91 x 91 x 30mm
1 x Backing panel with square holes to suits hooks & holders
5 x Plastic buckets
1 x Bucket holder
10 x Single prong hooks
5 x Double prong hooks
