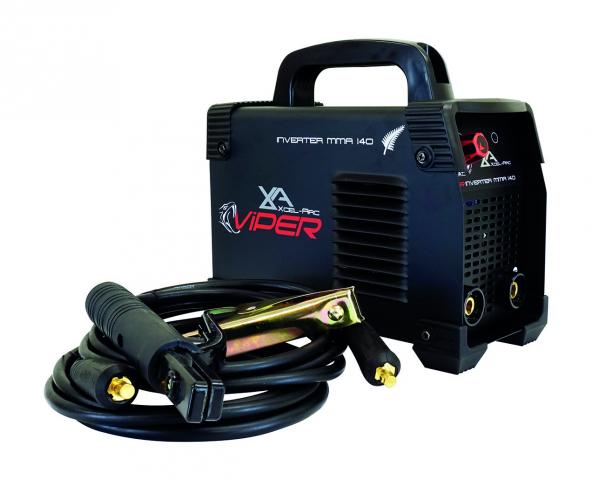

VIPER ARC140 DC WELDER
$345.59 Incl GST
Available but product is fulfilled from our warehouse.
Available but product is fulfilled from our warehouse.
Description
10 AMP PLUG | MMA | DC-TIG
Don’t let the pros have all the fun. The VIPER™ ARC 140 is the perfect STICK welder to get you up and running. Packed with all the features you need for STICK welding, this is the welder that proves you don’t need to break the bank for a decent machine. Better yet, it comes with the pioneering build quality Xcel-Arc is recognised for throughout the industry. The VIPER™ ARC 140 also features DC Scratch Start TIG in case you needed another excuse to purchase.
Features
• Modern IGBT inverter technology
• MMA (stick electrode)
– Hot start (improves electrode starting)
– Arc force (prevents electrode extinguishing)
– Excellent arc stability with all electrodes
• DC TIG
– Basic DC-TIG with scratch start
• Thermal overload protection
• IP21S rating for environment/safety protection
• Tolerant to variable power supply
• Fitted with domestic 10 amp plug
• Generator compatible (recommend 6.5 kVA)
Technical Data
Power Supply – 240V 1-Phase ±15%
Rated Input Power – 6.5 kVA
I ieff as per AS/NZ60974-1 – 10.0 Amps
Rated Output – 140 Amps / 25.6V
Welding Current Range – 20 ~ 140 Amps
No-Load Voltage (OCV) – 68V
Duty Cycle @ 40ºC as per AS/NZ60974-1 – 15% @ 140 Amps
Efficiency (%) – 85%
Power Factor – 0.65
Protection Class – IP21S
Insulation Class – F
Size (LxWxH) – 295 x 135 x 270mm
Weight – 3.8 Kg
Warranty 12 months machine only
Certification Approval – AS/NZ60974-1
