Description

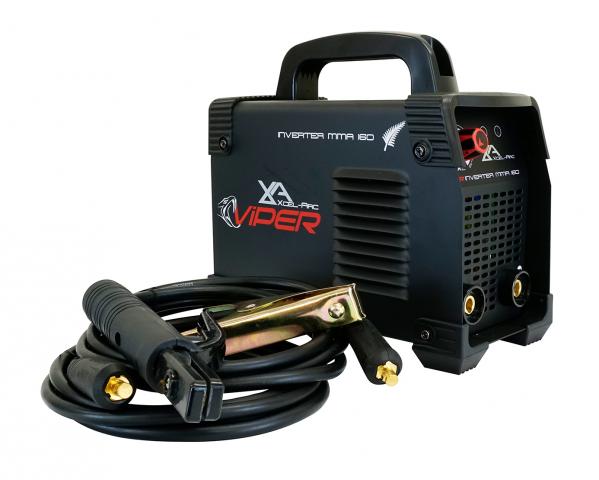

VIPER ARC160 DC INVERTER WELDER
160Amp DC Welding Machine
230V Single Phase 160 Amp DC Welder
Small, Lightweight and Portable
Welds: Steels, Stainless, Cast Iron, Bronze, Copper
Product Overview
The VIPER ARC160 from XcelArc is a new generation, low cost welding machine produced using modern IGBT inverter technology.
Designed to meet the needs of the price conscious noncommercial user without compromising on quality, this machine is as reliable and robust as you would expect a machine bearing the XcelArc name to be. The DC MMA welding function delivers a smooth and incredibly stable arc allowing easy welding with electrodes producing high quality welds including cast Iron, stainless steel and low hydrogen.
Connection of the optional XA17V Tig torch allows basic scratchstart DCTIG welding of steel, stainless steel, bronze and copper. The unique electronic design structure and air channel design in this machine speeds up the heat disapation improving the duty cycle of the machine and reducing dust ingestion by the fan, thereby improving the reliability of the machine. The VIPER ARC160 is an exceptional machine for the price and is suitable for a wide range of applications including light fabrication, farming and whatever else a Kiwi bloke might be working on in his shed. The VIPER ARC160 offers great portability with enough power to get the job done at a great price.
Designed and built to our specification and manufactured in compliance to AS/NZ609741.
Features
� IGBT inverter technology
� Modern IGBT inverter technology
� MMA (stick electrode)
Hot start (improves electrode starting)
Arc force (prevents electrode extinguishing)
Excellent arc stability with all electrodes
� DCTIG
Basic DCTIG with scratch start
� Thermal overload protection
� IP21S rating for environment/safety protection
� Generator compatible (recommend 8.0 kVA)
� Tolerant to variable power supply
Technical Data
Power Supply 240V 1Phase ±15%
Rated Input Power 8.0 kVA
I ieff as per AS/NZ609741 12.5 Amps
Rated Output 160 Amps / 26.4V
Welding Current Range 20 ~ 160 Amps
NoLoad Voltage (OCV) 62.9V
Duty Cycle @ 40ºC as per AS/NZ609741 15% @ 160 Amps
Efficiency (%) 85%
Power Factor 0.63
Protection Class IP21S
Insulation Class F
Size (LxWxH) 295 x 135 x 270mm
Weight 4.0 Kg
Warranty 12 months machine only
Certification Approval AS/NZ609741
