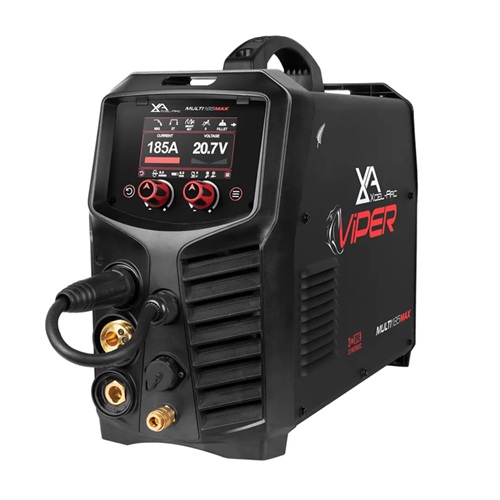

VIPER™ 185 Max Pulse MIG/TIG/STICK Welder

10 AMP PLUG | SPOOL GUN READY | SINGLE PULSE MIG

Now with single pulse MIG, the VIPER MULTI 185MAX is the perfect multi-process machine for all those home repairs and hobby projects you’ve got planned.

Single pulse MIG programs & high-frequency DC TIG
MIG Smart-Set weld modes for complete synergic setups
10 amp plug, so you can use it with any domestic outlet

MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
240V Single Phase
SUPPLY PLUG
10 AMP
Ieff (A)
10.0
Imax (A)
31.0
NO LOAD VOLTAGE (V)
67.0
PROTECTION CLASS
IP21S
INSULATION CLASS
H
MINIMUM GENERATOR (kVA)
10.0
DINSE CONNECTOR
35/50
STANDARD
AS/NZ60974-1
SUITABLE MATERIAL
MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze MMA: Mild Steel, Stainless Steel, Cast Iron TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
WARRANTY (Years)
3
MIG Specifications
MIG WELDING CURRENT RANGE
30-185A
MIG DUTY CYCLE @ 40°C
10% @ 185A | 60% @ 77A | 100% @ 60A
MIG WIRE SIZE RANGE
0.6-1.0mm
MIG WIRE SPOOL SIZE
1kg / 5kg
MIG WELDING THICKNESS RANGE
1-10mm
DRIVE ROLLER SIZE
30/22
TIG SPECIFICATIONS
TIG FUNCTION TYPE
DC High-Frequency TIG, DC Lift Arc
TIG WELDING CURRENT RANGE
20-185A
TIG DUTY CYCLE @ 40°C
10% @ 185A | 60% @ 77A | 100% @ 60A
TIG WELDING THICKNESS RANGE
1-6mm
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
20-180A
STICK DUTY CYCLE @ 40°C
10% @ 185A | 60% @ 75A | 100% @ 60A
STICK ELECTRODE RANGE
2.5-4.0mm
STICK WELDING THICKNESS RANGE
2-10mm
Size & Weight
DIMENSIONS (mm)
553x214x388mm
WEIGHT (kg)
13.5kg
MACHINE FEATURES
WIRE DRIVE
Digital Geared
VRD
Yes
SPOOL GUN CONNECTION
Yes
FOOT CONTROL CONNECTION
Yes
BURNBACK ADJUSTMENT
Yes
INDUCTANCE CONTROL
Yes
