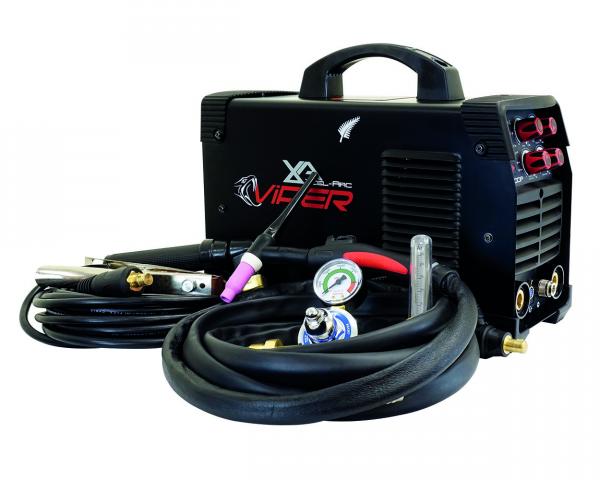

Viper TIG200P DC-TIG/MMA Inverter Welder Package, HF Start & Pulse TIG, C/w 8mtr TIG Torch with Remote Amp Control, 4mtr Arc Set & Reg

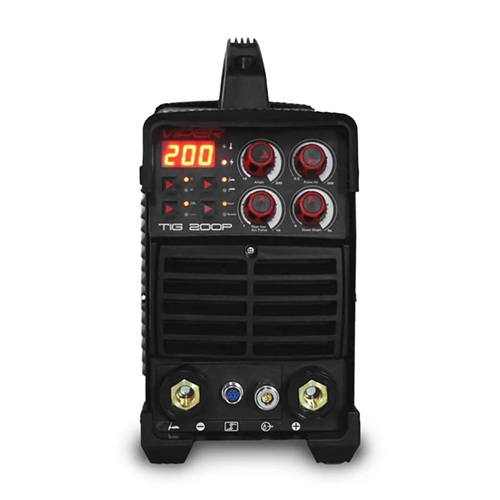

VIPER TIG200VP DC TIG INVERTER WELDER

200Amp DC TIG Welding Machine
HF Start, Pulse Adjustment
230V Single Phase 200 Amp DC Welder
Welds: Steels, Stainless, Cast Iron, Bronze, Copper

Product Overview
The VIPER TIG200P is an inverterbased DC Tig welding machine with HF Arc Ignition and Pulse capability. Produced using the latest in IGBT technology, this low cost and portable machine is reliable, robust and stacked with functions you�d find in a professional DC TIG welder. The HF Arc Ignition provides PreGas and instant arc ignition with the press of the torch switch leaving no tungsten inclusion and no contamination of the tungsten electrode. The Down Slope & PostGas functions combined with the 2/4T trigger function allow you to control the start and finish of the weld process at a professional level. Adjustable Pulse Frequency 0.2~200 Hz gives you the added capability to control the heat input into the work, control penetration and help control distortion. The remote control interface provides remote amperage control from the torch in both static and live welding modes. The remote control receptacle also provides connection of the optional foot control. Combining the functions of the VIPER TIG200P ensures comprehensive control of the welding parameters when welding all DC weldable materials giving a remarkably smooth arc producing high quality TIG welds. The DC MMA welding capability delivers a smooth and stable arc allowing easy welding with electrodes obtaining high quality welds including cast Iron, stainless and low hydrogen. The VIPER TIG200P is a semiprofessional machine that is suited to multiple applications; stainless steel fabrication, light industrial use, site welding, repair and maintenance applications. Designed and built to our specification and manufactured in compliance to AS/NZ60974.1

Features
� Modern IGBT inverter technology
� DC TIG
HF arc ignition (prevents tungsten inclusion/damage)
Adjustable pulse frequency 0~200Hz
Preset base current & pulse width
Adjustable downslope 0~5 seconds
Adjustable post gas 1~10 seconds
2/4T trigger
Remote amp control
� MMA function (stick electrode)
High 75 OCV (for low hydrogen electrodes)
Hot start (improves electrode starting)
Arc Force (prevents electrode extinguishing)
Excellent arc stability with all electrodes
� Thermal overload protection
� IP21S rating for environment/safety protection
� Generator compatible (recommend 8.0 kVA)
� Tolerant to variable power supply

Technical Data
Power Supply 240V 1Phase ±15%
Rated Input Power 8.0 kVA
I ieff as per AS/NZ609741 15.0 Amps
Rated Output 160 Amps / 27.2V MMA , 200 Amps / 18.0V TIG
Welding Current Range 10 ~ 160 Amps MMA , 10 ~ 200 Amps TIG
NoLoad Voltage (OCV) 75V
Duty Cycle @ 40ºC as per AS/NZ609741 20% @ 160 Amps MMA , 30% @ 200 Amps TIG
Protection Class IP21S
Insulation Class F
Size (LxWxH) 420 x 160 x 330mm
Weight 7.5 Kg
Warranty 12 months machine only
Certification Approval AS/NZ609741
