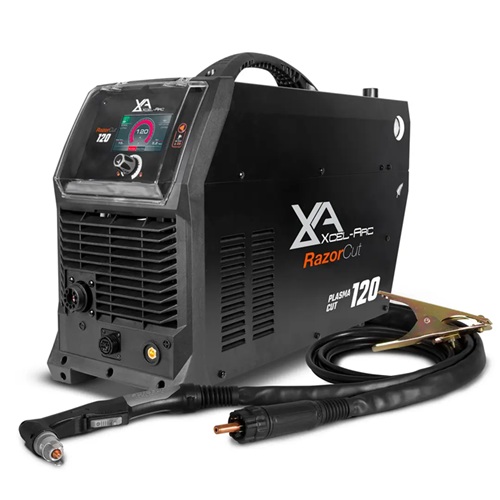

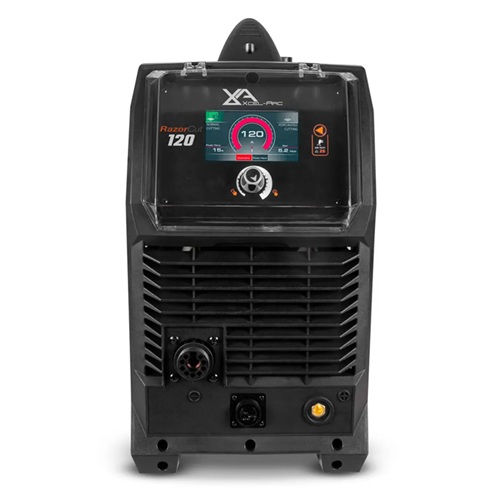

RAZOR™ CUT 120 PLASMA CUTTER
$5,787.72 Incl GST
Available but product is fulfilled from our warehouse.
Available but product is fulfilled from our warehouse.
Description
415V THREE-PHASE | 45mm CLEAN CUT | 60mm SEVERANCE
The RAZOR™ CUT 120 is designed for maximum performance, offering the highest level of cutting performance from Xcel-Arc’s range. Capable of clean cutting 45mm and severing 60mm, this machine is for the professional needing maximum power from a portable machine.
CNC Connection
Pilot Arc Start
Digital Screen
45mm Clean Cut
60mm Severance
2T/4T Torch Controls
Air Test
PILOT ARC START
Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
Package Contents
RAZOR™ CUT 120 Plasma Cutter
6m SC120 Plasma Torch
4m Earth Lead
Air Regulator
Operating Manual
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
415V Three Phase
SUPPLY PLUG
32 AMP
Ieff (A)
26.0
NO LOAD VOLTAGE (V)
420
PROTECTION CLASS
IP21S
INSULATION CLASS
F
DINSE CONNECTOR
10/25
STANDARD
AS/NZ60974-1
WARRANTY (Years)
3
Size & Weight
WEIGHT (kg)
24kg
PLASMA CUT SPECIFICATIONS
PLASMA CUT CURRENT RANGE
20-120A
PLASMA CUT DUTY CYCLE @ 40°C
60% @ 120A, 100%@100A
MILD STEEL CUT THICKNESS
45mm
MILD STEEL SEVERANCE THICKNESS
60mm
ALUMINIUM CUT THICKNESS
36mm
STAINLESS STEEL CUT THICKNESS
45mm
AIR FLOW DRAW OFF (L/min)
189
AIR FLOW PRESSURE (Bar)
5.17 (75 psi)
PLASMA ARC START
Pilot Arc
MACHINE FEATURES
THERMAL OVERLOAD PROTECTION
Over Temperature Warning
